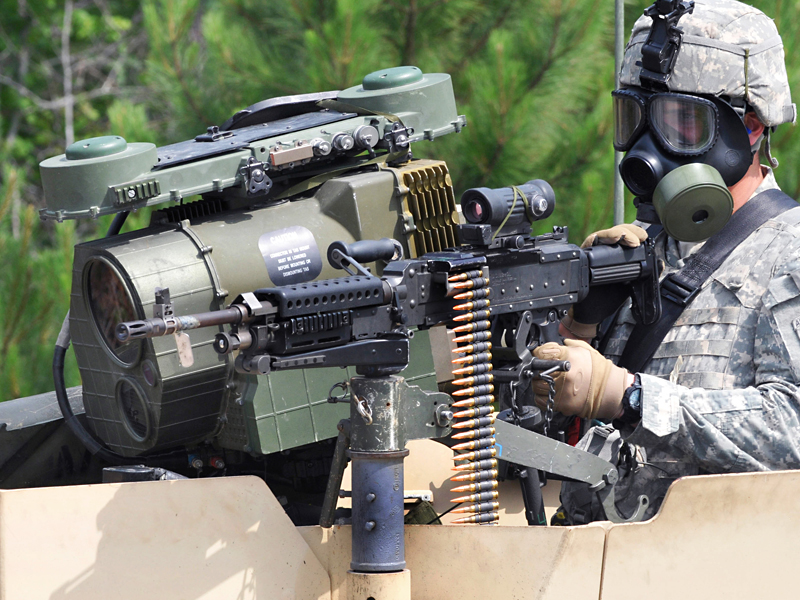

ACME M240 GAR® in Training

The ACME M240 Replica Weapon System

ACME’s M240 Replica Weapon System is a training workhorse. Gunners can practice (and instructors can track) M240 feeding, loading, arming/safing and firing. Insertable malfunctions challenge gunners with crisis events when the gun isn’t working properly. The complete system includes everything needed for training including the replica weapon, GAR® recoil system, mount, electronics, software, and support manuals.

The versatile M240 weapon is used worldwide by infantry and is mounted on tanks, trucks, helicopters, boats, ships, and more. We make a wide range of replica M240 systems to meet all those training applications. Plus, we make multiple variants of the 7.62mm M-240- type weapon trainers including the M240B, M240D, L7A2, C6, and the M60 to meet your custom training needs.
Like all ACME weapon trainers, our M240 systems feature a high fidelity replica weapon with full suite of sensors backed by software logic. The training system includes our GAR® recoil system providing full-force recoil at full rate of fire.

 M240 Weapon Facts

The M240, officially Machine Gun, 7.62mm, M240, is the US military designation for the FN MAG (Mitrailleuse d’Appui Général, meaning General Purpose Machine Gun), a family of belt-fed, gas-operated medium machine guns firing the 7.62×51mm NATO cartridge.The M240 has been used by the United States Armed Forces since the late-1970s. It is used extensively by infantry, most often rifle companies; as well as ground vehicles; watercraft; and aircraft. Despite not being the lightest medium machine gun in service, it is highly regarded for reliability, and its standardization among NATO members is also seen as a major advantage.

All variants are fed from disintegrating belts, and are capable of firing most types of 7.62 mm (.308) NATO ammunition. M240 variants can use non-disintegrating belts (following replacement of a few easily swappable parts). There are significant differences in weight and some features among some versions which restrict interchangeability of parts. The M240s used by the US military are currently manufactured by FN Manufacturing, a US-based branch of FN Herstal.

The M240B and M240G are usually fired from an integrated bipod, a vehicular mount, an M192 tripod that is mostly used by the U.S. Army; and the M122 tripod (a slightly updated M2 tripod) that is mostly used by the U.S. Marine Corps.

ACME M240 GAR® Product Images

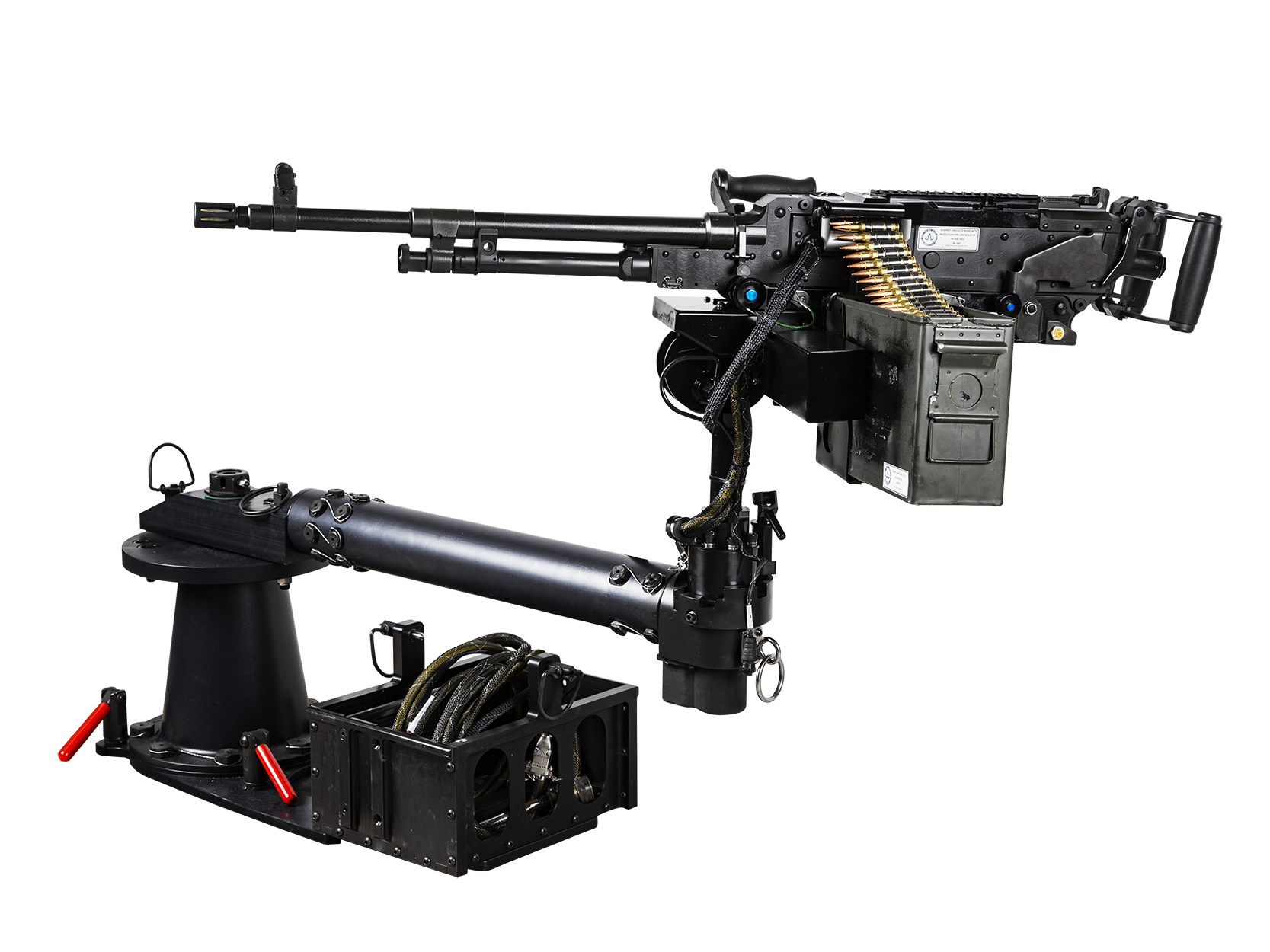

M134 Left Side View

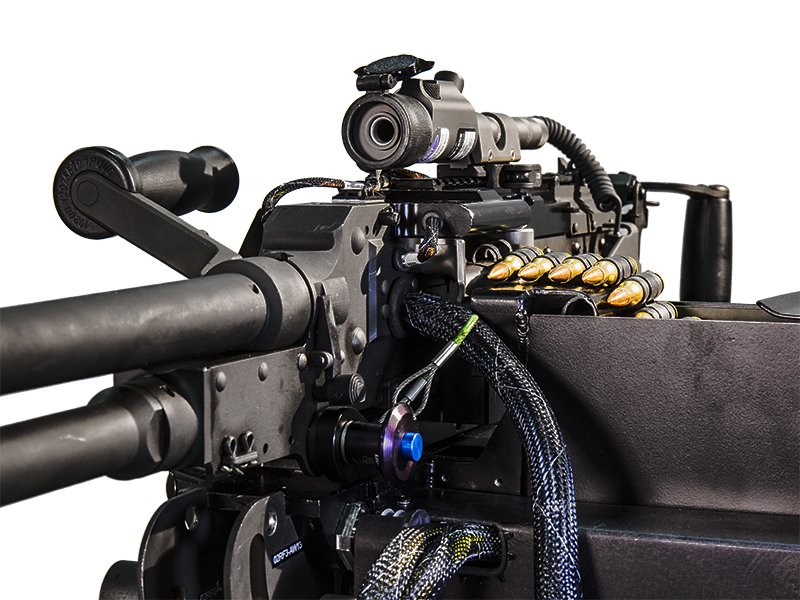

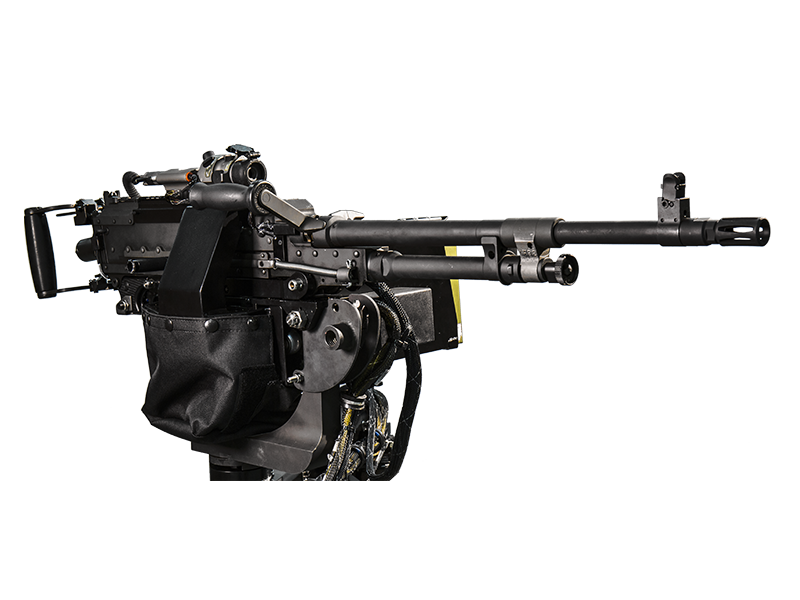

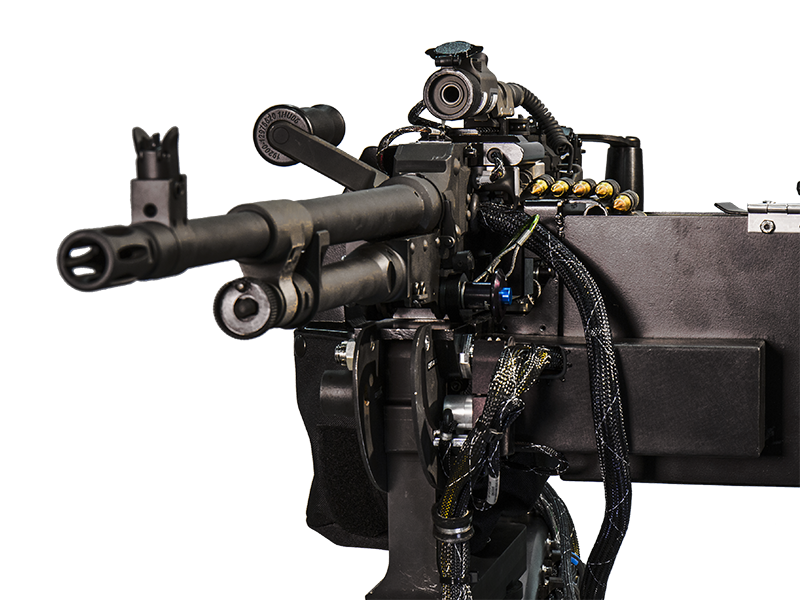

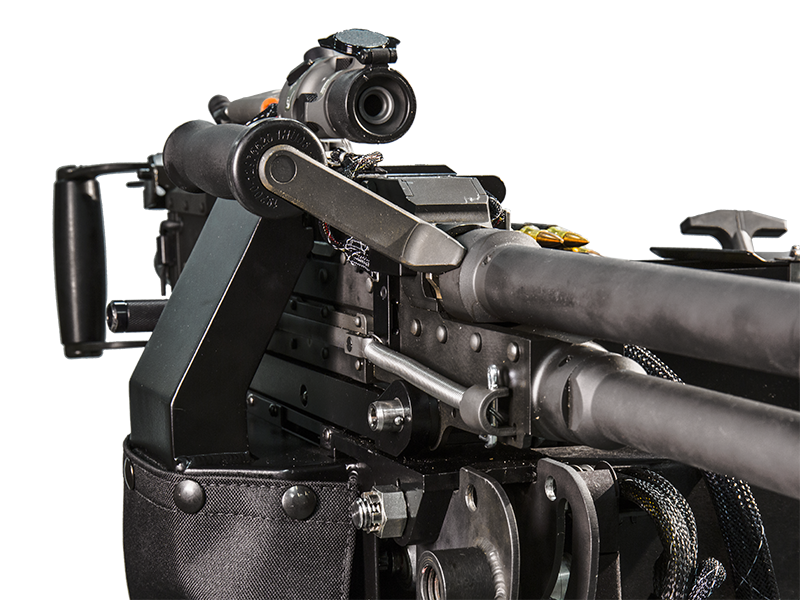

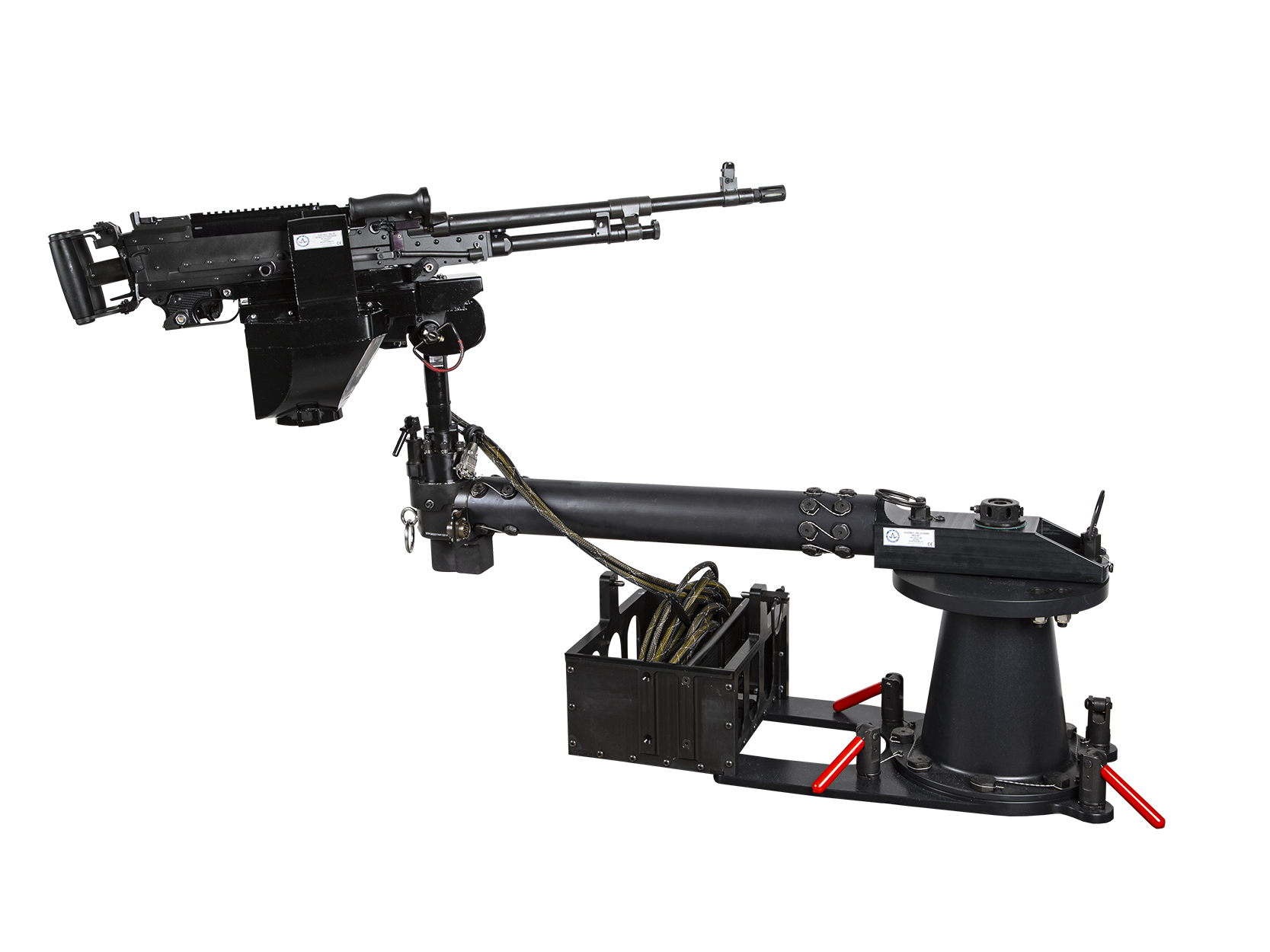

M240 Right Side View

EH-101 L7A2 on Mount

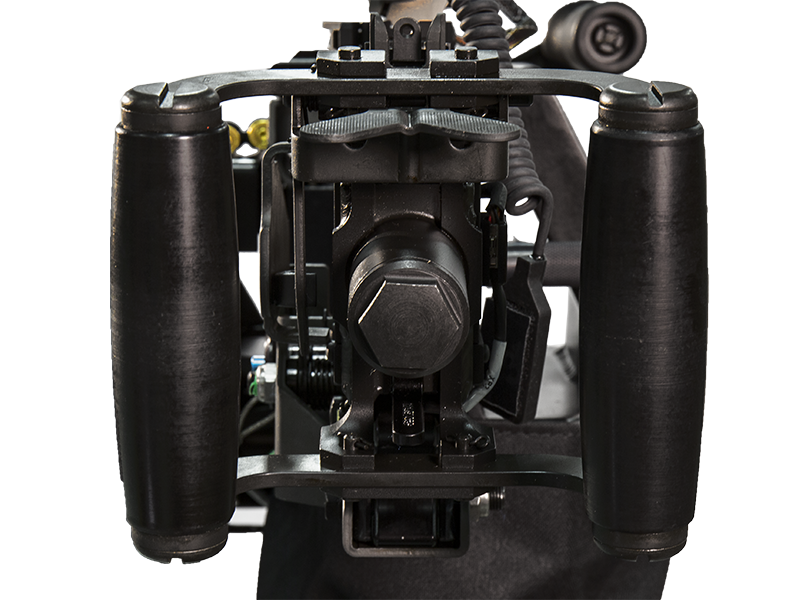

M240 with Spade Grips

Gun Force Side View

Gun Force Bottom View

GAR® Chassis

GAR® Cables

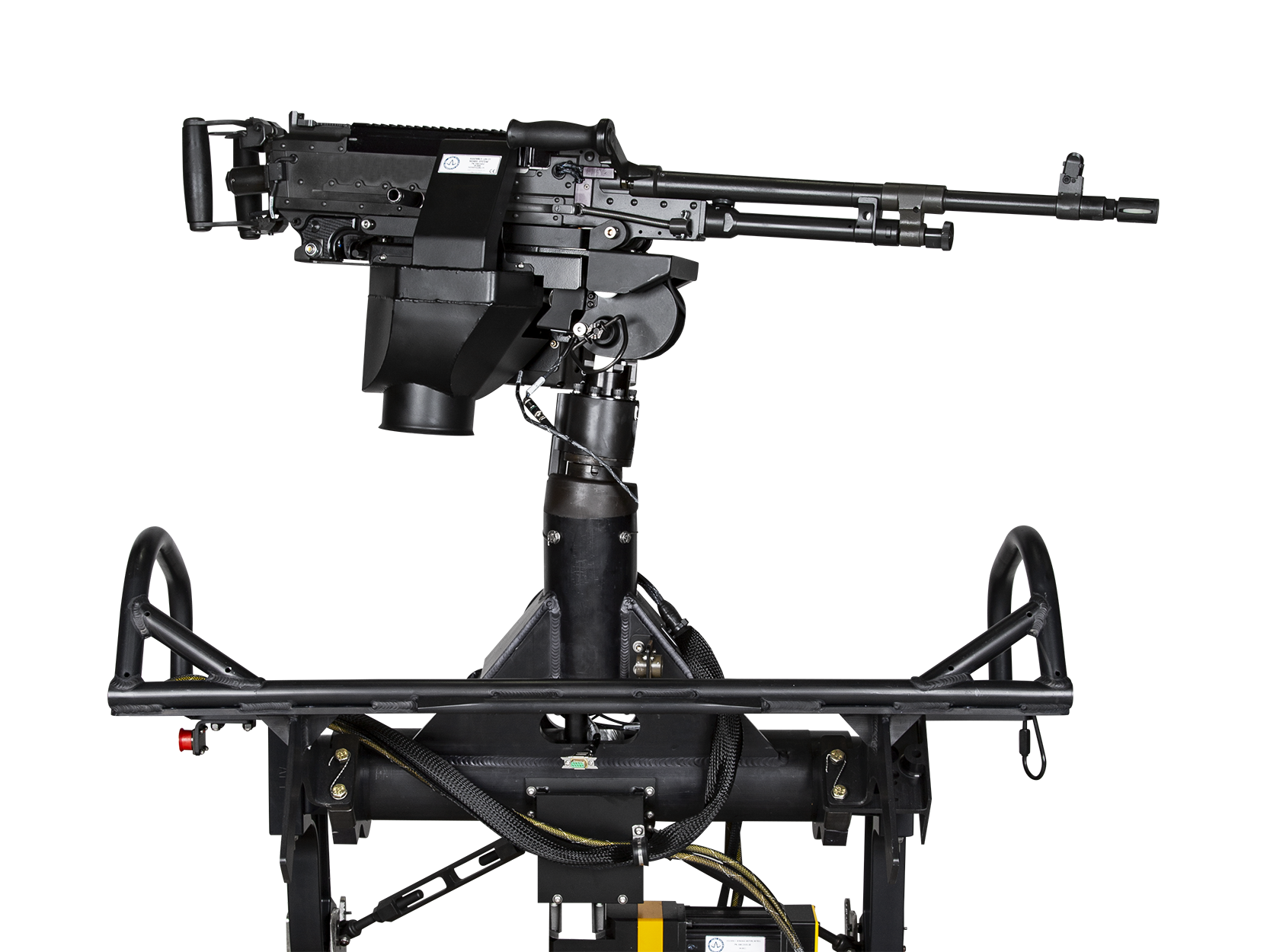

ACME M240 GAR® Replica Weapon System

Realistic Recoil at the Grips

Full Suite of I/O Sensors

Realistic Rate of Fire

Variable Torque
for Wind Forces

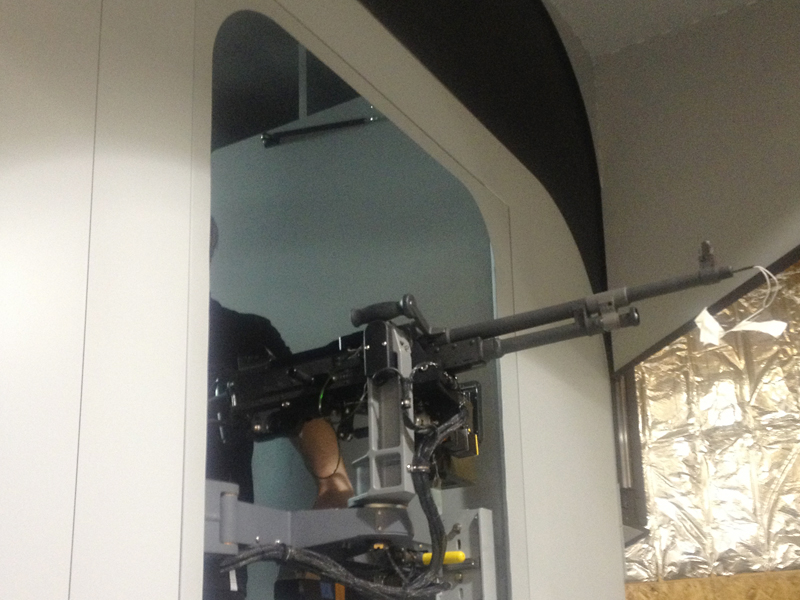

  • C6 End User: Canadian CH147 Helicopter Gunnery Trainer
  • L7A2  End User: United Kingdom EH-101 Helicopter Trainer
  • M60 End User: United Kingdom CH-47 Helicopter Trainer
  • M240 End User: US Navy, multiple Shore-based Training Systems
  • M240 End User: US Army Land-based, Threat Awareness Training System
  • M240 End User: US Navy, multiple MH-60S Helicopter Trainers
  • M240 End User: US Navy, multiple MN-60R Helicopter Trainers
  • M240 End User: USMC CH-53, UH-1Y, CV-22 Helicopter Trainers
  • M240 End User: USCG H-65 Helicopter Trainers
  • M240 End User: USMC CH-47, CH-53 Helicopter Trainer
  • M240 End User: US Army many H-60, Helicopter Trainers
  • M240 End User: US Army many Convoy Trainers
  • M240 End User: Bluedrop CH-47 Helicopter Trainer
SENSORS/ENCODERS

  • Trigger
  • Charging Handle
  • Top Cover
  • Ammo Feed
  • Ammo Present
  • Safety
  • Bolt Back
  • Azimuth Position
  • Elevation Position
OPTIONS

  • Muzzle Flash
  • Jam Round Light
  • Barrel Removal
  • Replica Laser
  • Gas Knob Sensor
  • Spade Grip
  • Buttstock
MALFUNCTIONS

  • Misfire
  • Jam
  • Runaway
  • Cookoff
  • Sluggish Fire



MODELS

  • M240H
  • M240B
  • C-6
  • L7A2
  • M60
  • Replica Weapon – Ultra realistic M240 weapon with sensors.
  • Gun Active Recoil (GAR®) – Weapon Cradle with integral, patented, all-electric, full-force, full-rate-of-fire recoil.
  • Electronics Chassis – Provides power and electronic drives for gun sensor and recoil system.
  • Weapon Mount – Can be a tripod or specific vehicle or aircraft mount.
  • Power and Signal Cables – Standard 25’ Cables allow weapon training away from remotely located electronics and power source.
  • Technical Data Package – Standard Operations & Maintenance Manual, Interface Control Document, Acceptance Test Procedures.
  • Warranty – One-year, Return-to-Factory warranty protects the product.

ACME M240 GAR® Product Information
