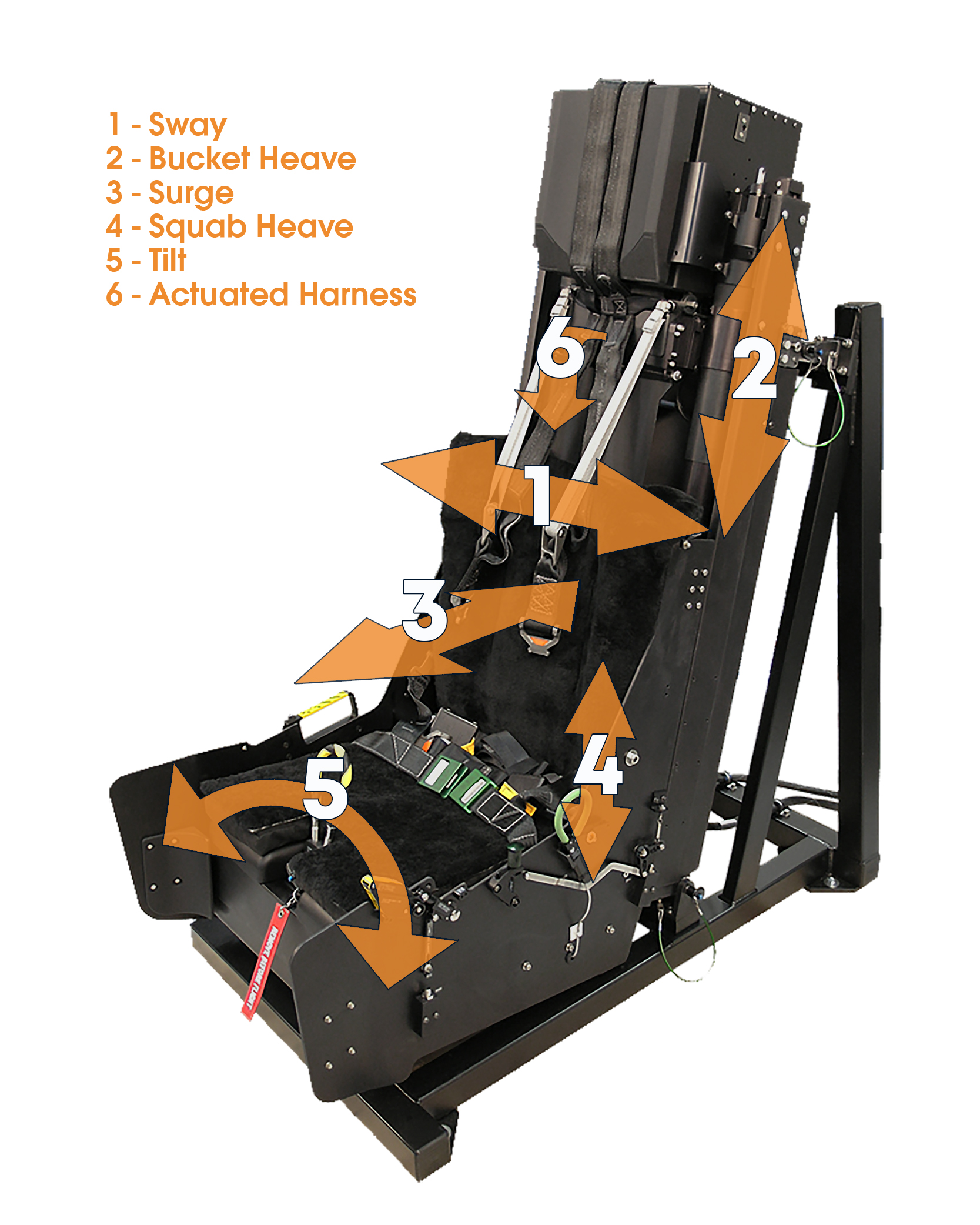

ACME True Q<sup>®</sup> Uses Multiple Motion Channels Working Together to Provide Cueing

ACME True Q® Uses Multiple Motion Channels Working Together to Provide Cueing

T-50 GOLDEN EAGLE
ROLE
• Advanced Trainer Multirole Fighter
NATIONAL ORIGIN
• South Korea
MANUFACTURER
• Korea Aerospace Industries (with technical support from Lockheed Martin)
FIRST FLIGHT
• 20 August 2002
PRIMARY USERS
• Republic of Korea AF / Indonesian AF / Philippine AF / Iraqi AF

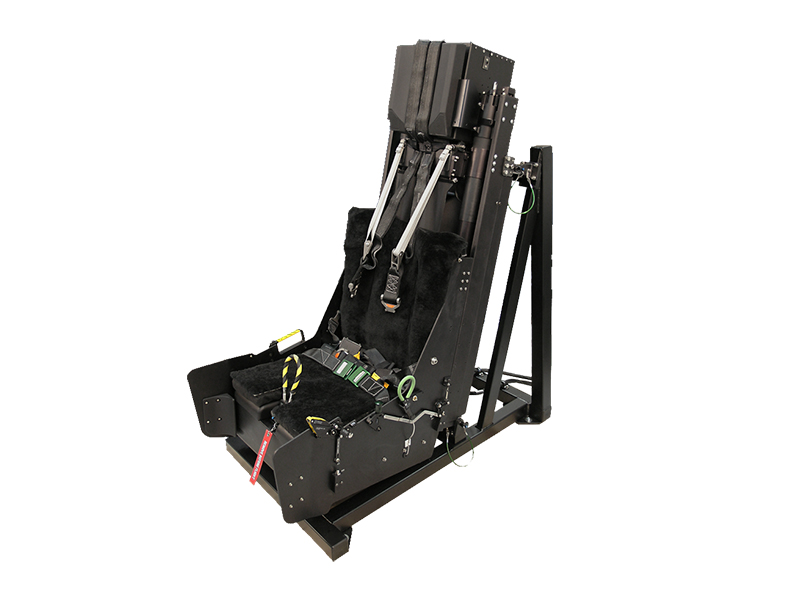

ACME’s T-50 dynamic motion seats are a combination of vehicle crew seats with electric motion components built inside the seat. The seats look, feel, and function like actual crew seats, and provide cues to emulate sensations felt during the vehicle or in-flight operations.

ACME seats translate simulator acceleration signals into realistic, convincing motion. True Q® seats provide a higher level of cueing, where the motion IS training, for example feeling unique signature sensations such as translation lift between Helicopters vertical and horizontal flight or the difference between a helicopter rotor out of balance or a blade of track.

The seats use a patented electric system with individual motion plates/pans, providing cues directly to the crew’s body.  It’s the effect of multiple channels in the seat working seamlessly together that provides complete, realistic, immersive cueing.

The COTS core motion system inside is adaptable to any external seat shape or form so we can provide motion seats for nearly any Military & Commercial simulator.

In fact, we’ve produced dynamic motion seats for training systems worldwide including land vehicles such as locomotives, and Humvee-trucks, helicopters including AH-64, Multiple H-60 models, NH90, CV-22s, and fighter jets including like M346, F-15, F-16, & T-50. We can pair fighter seats with our G-suit system too for additional cueing capability.

ACME’s True Q® motion seats are an ideal way to cost-effectively add realistic motion cueing to any Sim.  Motion Seats are much less expensive that motion platforms and offer much greater cueing than seat or platform shakers and ACME seats can provide unique cues such as yaw twist simply not available in platforms or shakers.


The KAI T-50 Golden Eagle (골든이글) is a family of South Korean supersonic advanced trainers and multirole light fighters, developed by the consortium that established by Korea Aerospace Industries (KAI) along with the American aerospace company Lockheed Martin. The T-50 is South Korea’s first indigenous supersonic aircraft and one of the world’s few supersonic trainers. Development began in the late 1990s, and its maiden flight occurred in 2002. The aircraft entered active service with the Republic of Korea Air Force (ROKAF) in 2005.

T-50 Group Display in ROKAF Airbase

T-50 Group Display in ROKAF Airbase

The T-50 has been further developed into aerobatic and combat variants, namely T-50B, TA-50, and FA-50. The F-50 is another advanced fighter variant being considered. The T-50B serves with the South Korean air force’s aerobatics team. The TA-50 light attack variant has been ordered by Indonesia. The Philippines ordered 12 units of the FA-50 variant. The T-50 is also being marketed as a candidate for the United States Air Force’s next-generation T-X trainer program.

The T-50 Golden Eagle design is largely derived from the F-16 Fighting Falcon, and they have many similarities: use of a single engine, speed, size, cost, and the range of weapons. KAI’s previous engineering experience in license-producing the KF-16 was a starting point for the development of the T-50.





ACME Worldwide Enterprises Dynamic Motion Seats are in the 5th Generation of evolution.  The product line is robust and well-tested to be used in a high-intensity training environment.  ACME offers a military grade solution for delivering patented motion cueing to any T-50 Simulator or Part Task Trainer.

Standard T-50 True Q® Dynamic Motion Seat Features:

  ACME True Q® DMS offers many standard base features for your simulator motion solutions.

  • Dynamic Motion Seat (DMS)
  • Electronics Chassis
  • DMS Computer System (Can drive 2 Electronic Chassis and 2 Seats)
  • Connecting Cables
  • DMS Maintenance Manuals
  • Daily Operational Readiness Test (DORT) Software
  • DMS Autotest – Capability that performs a complete performance test on the seat. All axis are exercised to verify the displacement, velocity, and acceleration performance of the seat using sensors that are independent of the normal drive equipment. This test is used to verify the DMS meets or exceeds all required performance criteria and to establish a performance baseline. The baseline can then be compared throughout the life cycle of the DMS for certification and maintenance purposes.
  • Vertical seat adjustments
  • Electric motors eliminates expensive hydraulics and maintenance intensive pneumatic systems
  • Easy access to system components for maintenance and tuning
  • Standard Safety Switches/Systems: Weight on Seat / Loss of Signal at DMS Computer / Crew Enable / Self Monitoring System
