The ACME EH-101 Dynamic Motion Seat

ACME’s EH-101 helicopter dynamic motion seats are a combination of vehicle crew seats with electric motion components built inside the seat. The seats look, feel, and function like actual crew seats, and provide cues to emulate sensations felt during the vehicle or in-flight operations.

ACME seats translate simulator acceleration signals into realistic, convincing motion. True Q® seats provide a higher level of cueing, where the motion IS training, for example feeling unique signature sensations such as translation lift between Helicopters vertical and horizontal flight or the difference between a helicopter rotor out of balance or a blade of track.

The seats use a patented electric system with individual motion plates/pans, providing cues directly to the crew’s body. It’s the effect of multiple channels in the seat working seamlessly together that provides complete, realistic, immersive cueing.  The COTS core motion system inside is adaptable to any external seat shape or form so we can provide motion seats for nearly any Military & Commercial simulator.

EH-101 Helicopter Facts

The AgustaWestland AW101 is a medium-lift helicopter used in both military and civil applications. It was developed by a joint venture between Westland Helicopters in the United Kingdom and Agusta in Italy in response to national requirements for a modern naval utility helicopter. Several operators, including the armed forces of Britain, Denmark, Norway and Portugal, use the name Merlin for their AW101 aircraft. It is manufactured at factories in Yeovil, England and Vergiate, Italy; licensed assembly work has also taken place in Japan and the United States.

Prior to 2007, the aircraft had been marketed under the designation EH101. The original designation was EHI 01 but a transcription error of a handwritten note changed this to EH101 and the designation stuck.[5] In 2000, Westland Helicopters and Agusta merged to form AgustaWestland, leading to the type’s redesignation as AW101. The type first flew in 1987, and entered into service in 1999. Since the AW101’s introduction, it has replaced several older helicopter types, such as the Sea King, performing roles such as medium-sized transport, anti-submarine warfare, and ship-based utility operations.

ACME Dynamic Motion Seats Helicopter Type Details Images

EH-101 Seat Adjustment

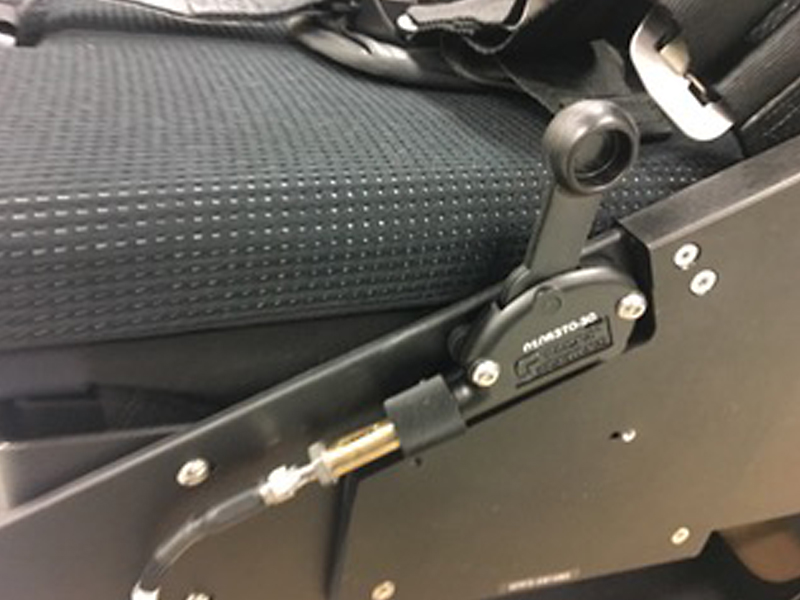

EH-101 VLSA Adjustment Knob

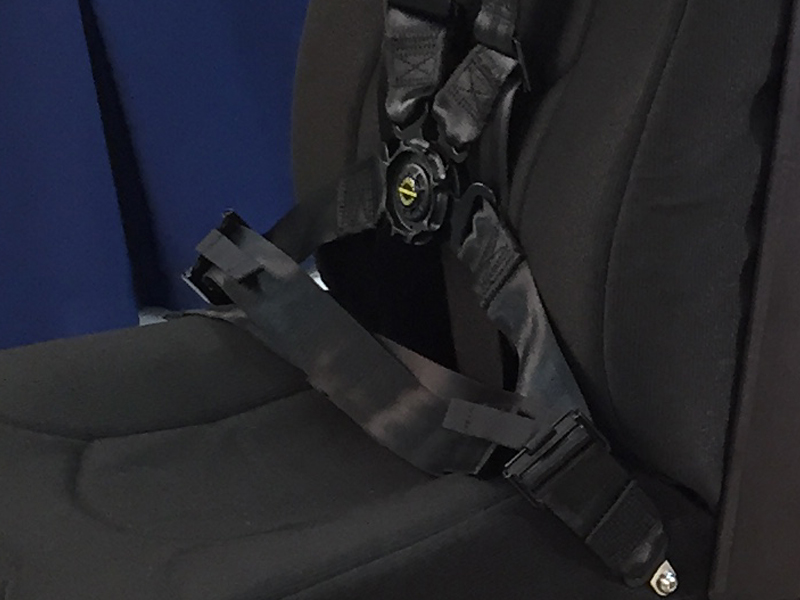

Harness and Belts

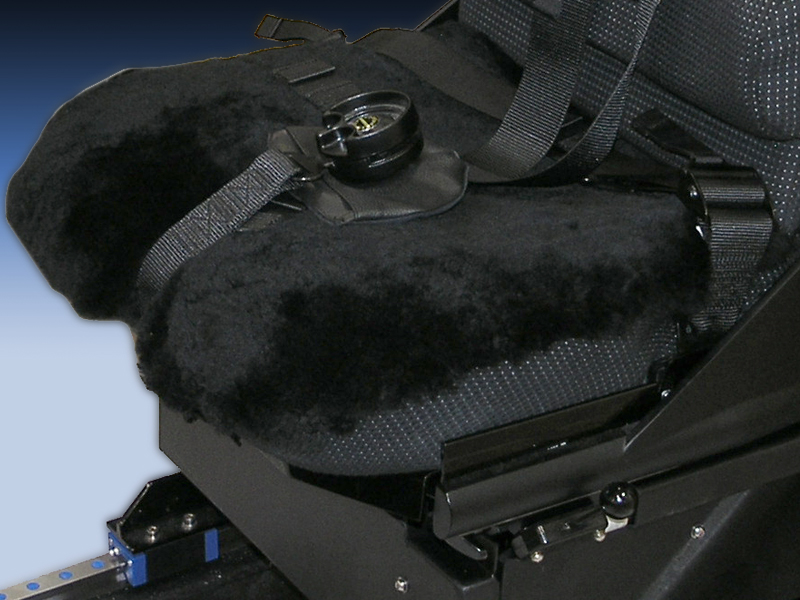

Replica Seat Cushions

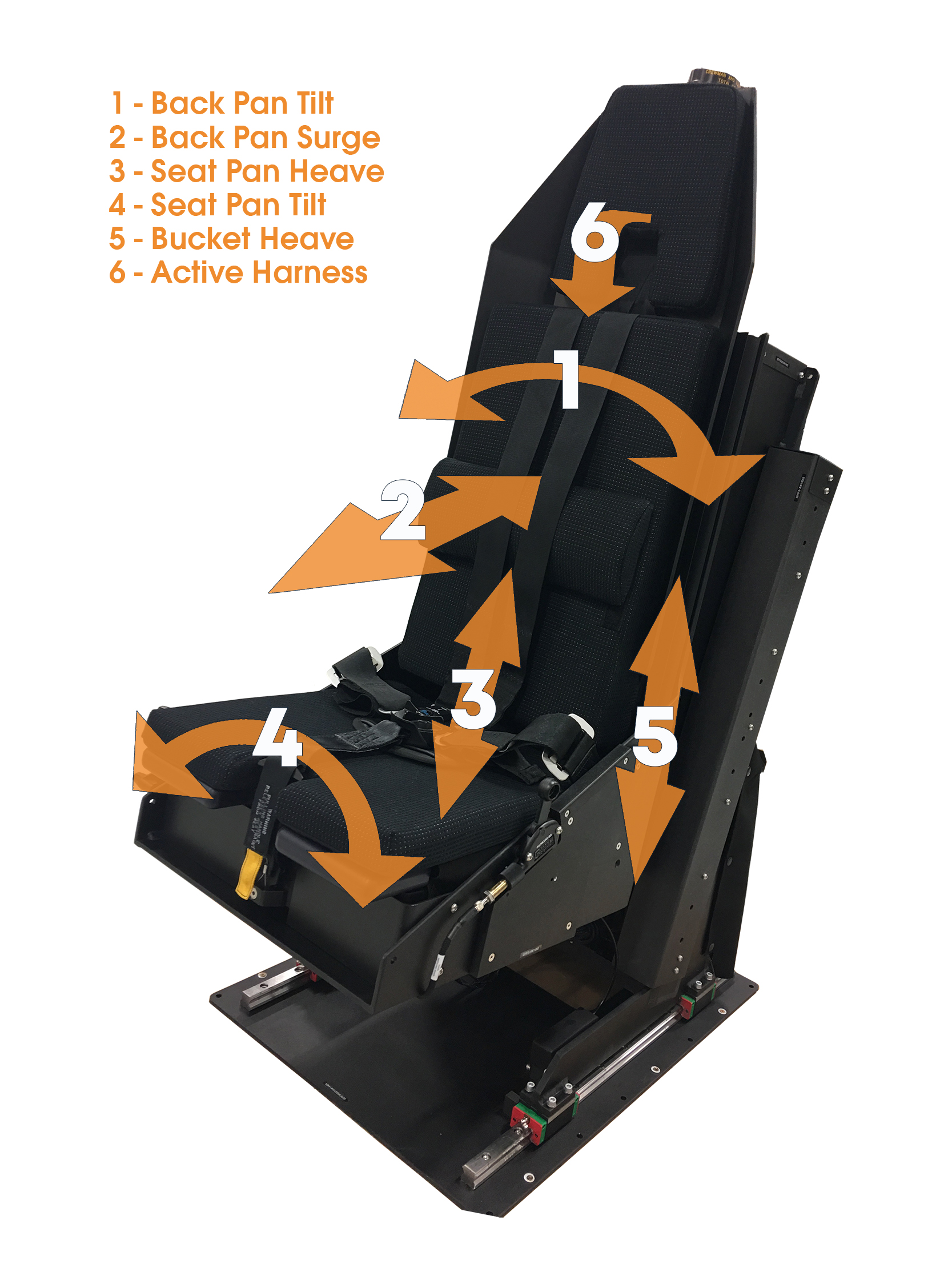

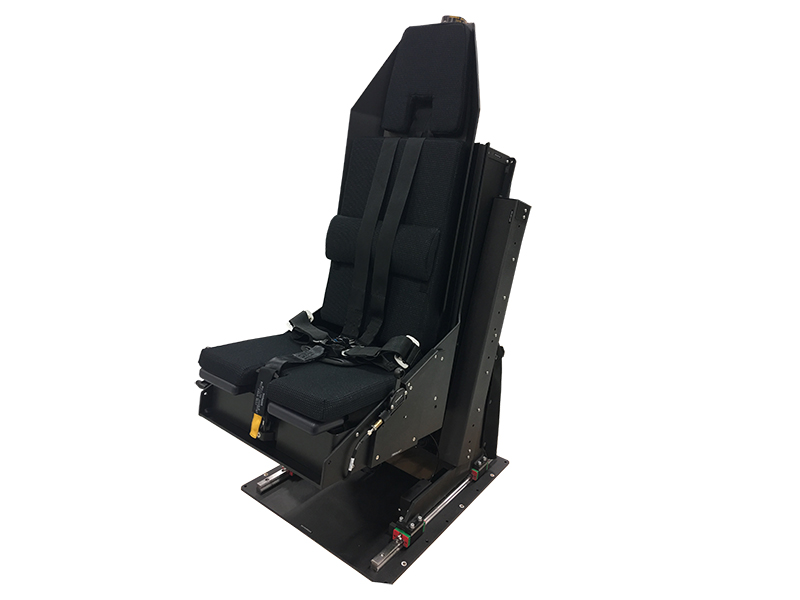

ACME EH-101 Dynamic Motion Seat

Sample Acceleration Cues

Sample Vibration Cues

Sample Shock/Impact Cues

  • Dynamic Motion Seat (DMS)
  • Electronics Chassis
  • DMS Computer System (Can drive 2 Electronic Chassis and 2 Seats)
  • Connecting Cables
  • DMS Maintenance Manuals
  • Daily Operational Readiness Test (DORT) Software
  • Vertical seat adjustments
  • Electric motors eliminates expensive hydraulics and maintenance intensive pneumatic systems
  • Easy access to system components for maintenance and tuning
  • Standard Safety Switches/Systems: Weight on Seat / Loss of Signal at DMS Computer / Crew Enable / Self Monitoring System

ROLE – Anti-submarine warfare, Medium-lift Transport and Utility Helicopter
NATIONAL ORIGIN – United Kingdom/Italy
MANUFACTURER – Agusta, AgustaWestland Helicopters, AgustaWestland, Finmeccanica, Leonardo S.p.A
INTRODUCTION – 1999
PRIMARY USERS – Royal Navy, Royal Air Force, Italian Navy, Royal Danish Air Force

ACME EH-101 DMS Product Information
