ACME Dynamic Motion Seat Overview

The ACME H-60 Variants Dynamic Motion Seat

ACME builds a range of H-60 Dynamic Motion Seats that mimic the specific details of the actual aircraft seats. Inside the high fidelity seat body, ACME integrates a full cueing system using patented electro-mechanical motors and linkages. It’s realistic cueing from a realistic replica.

ACME builds a range of H-60 seats because each of the different helicopters have slightly different seats. Those different details can be important for training. Armor plates, bucket shapes, cushions, harnesses, buckles, adjustments, and the levers for adjustments can all be different between the helicopter types. ACME captures all those details by seat type. So, you can be sure your MH-60R simulator has the correct MH-60R seat and not an MH-60S seat or worse, a simple generic seat that leads to negative training.

From the crew position, ACME’s H-60s seats look, feel, and function just like the real helicopter seats. Every point where the crews interact with the seat is precise. Because for military helicopter sims it’s important to train like you will fight.

 H-60 Helicopter Facts

The Sikorsky SH-60/MH-60 Seahawk (or Sea Hawk) is a twin turboshaft engine, multi-mission United States Navy helicopter based on the United States Army UH-60 Black Hawk and a member of the Sikorsky S-70 family. The most significant airframe modification is a hinged tail to reduce its footprint aboard ships.

The U.S. Navy uses the H-60 airframe under the model designations SH-60B, SH-60F, HH-60H, MH-60R, and MH-60S. Able to deploy aboard any air-capable frigate, destroyer, cruiser, fast combat support ship, amphibious assault ship, or aircraft carrier, the Seahawk can handle anti-submarine warfare (ASW), anti-surface warfare (ASUW), naval special warfare (NSW) insertion, search and rescue (SAR), combat search and rescue (CSAR), vertical replenishment (VERTREP), and medical evacuation (MEDEVAC). All Navy H-60s carry a rescue hoist for SAR/CSAR missions.

ACME Dynamic Motion Seats Helicopter Type Details Images

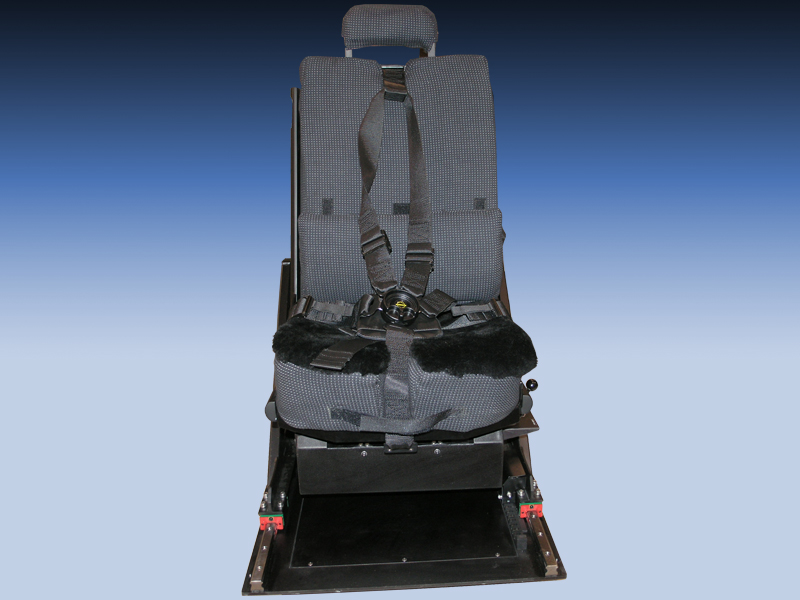

H-60 Front View

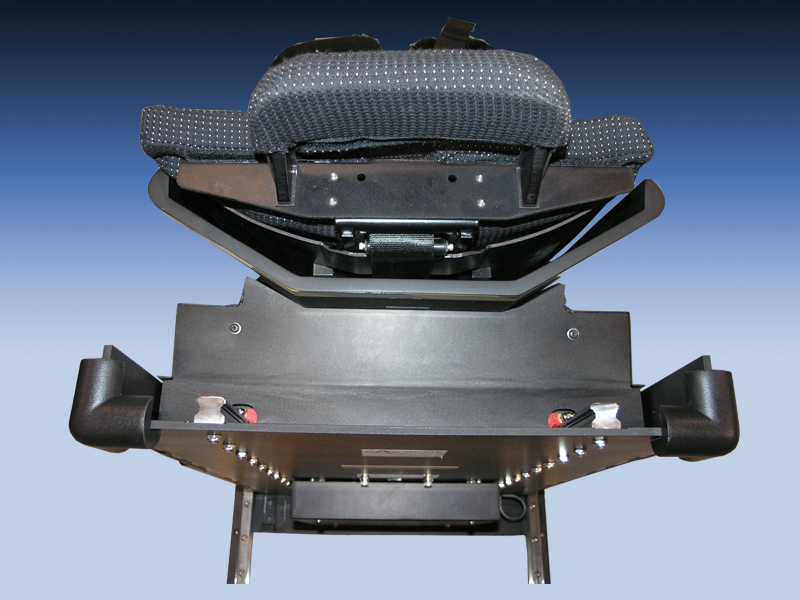

H-60 Top View

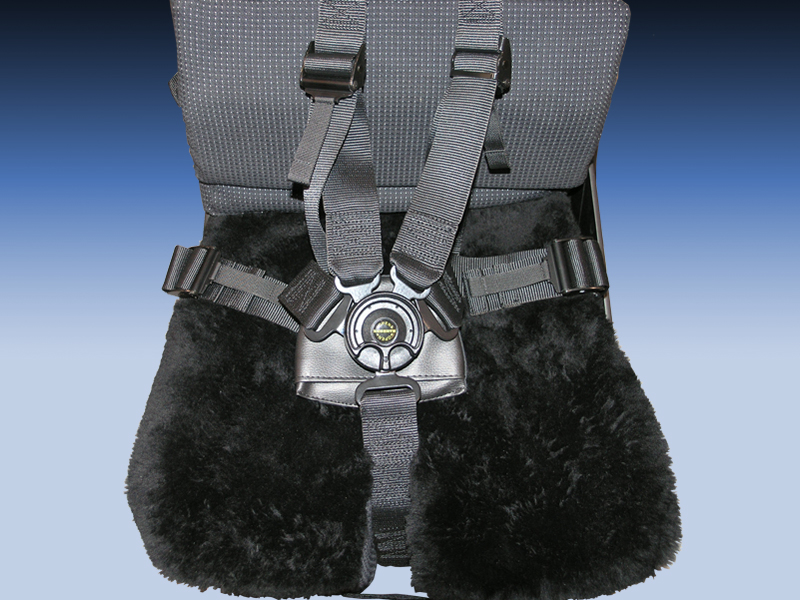

H-60 Seat Harness

H-60 Buckle Harness

H-60 Harness Lock

H-60 Side View

H-60 Replica Seat Cushions

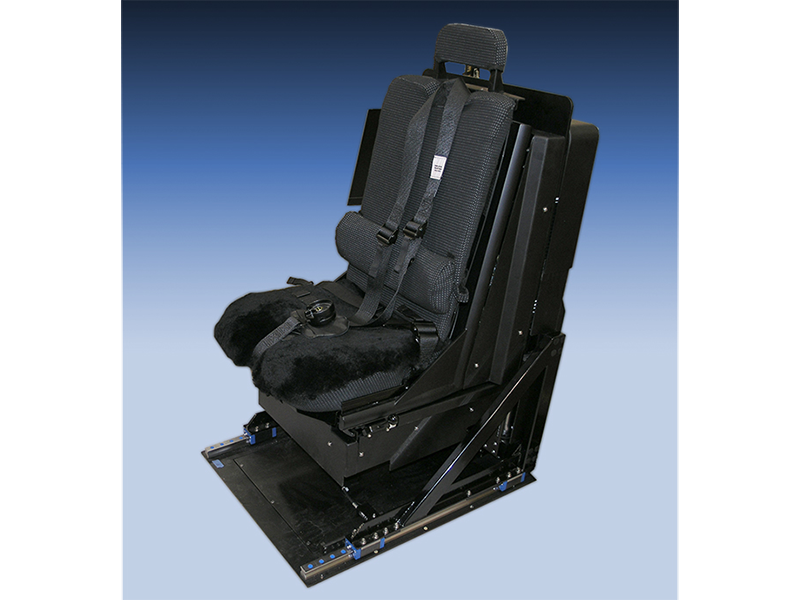

ACME H-60 Dynamic Motion Seat

  • Dynamic Motion Seat (DMS)
  • Electronics Chassis
  • DMS Computer System (Can drive 2 Electronic Chassis and 2 Seats)
  • Connecting Cables
  • DMS Maintenance Manuals
  • Daily Operational Readiness Test (DORT) Software
  • Vertical seat adjustments
  • Electric motors eliminates expensive hydraulics and maintenance intensive pneumatic systems
  • Easy access to system components for maintenance and tuning
  • Standard Safety Switches/Systems: Weight on Seat / Loss of Signal at DMS Computer / Crew Enable / Self Monitoring System

ROLE – Multimission Maritime Helicopter
MANUFACTURER – Sikorsky Aircraft
PRIMARY USERS – United States Navy / Royal Australian Navy
